HEL Direct Fit Oil Cooler Kit for Honda Civic (FK2) Type R
HEL Direct Fit Oil Cooler Kit for Honda Civic (FK2) Type R
Couldn't load pickup availability
Product Description:
IMPORTANT NOTE: The lead-time on this product is 4 months from order
After the success of HEL UK's development work on the latest exciting Japanese pocket rocket, the GR Yaris, they were really keen to look back on another one which would benefit from the same treatment, given how little on the market there was for it.
HEL knew they wanted to create an easy to fit oil cooler kit, so they 3D scanned the engine bay to find the best solution. As a result, a 2 custom aluminium bracket was manufactured in order to mount the oil cooler on the crash bar. The cooler sits in direct air flow in the space between the 2 headlights, the perfect location for effective cooling.
The kit is based around the popular Swedish-manufactured Setrab Series 6 ProLine oil cooler. The 19 row fits perfectly in the space and gives a great balance between minimising pressure loss while giving very effective cooling.
We've been using Setrab oil coolers for over 20 years without any issues and their performance is unrivalled. There are lots of cheaper imported options available, but none as reliable (there aren't many things worse than having a burst oil cooler!). In fact, we've had reports of front end collisions and the Setrab oil cooler was the only thing that still worked!
This comprehensive kit arrives with preassembled HEL braided hoses and anodised aluminium fittings. These AN10 high flow performance hoses deliver and return oil from the oil cooler to a non-thermostatic sandwich plate and a crash bar mounted inline thermostat, set at 92°C (197.6°F). (A full diagram showing exactly where to mount the thermostat and brackets for the cooler is included in the kit). We've found the 92°C option gives you the perfect balance between cooling when needed and letting the engine warm up safely. It's also dangerous for the oil to be too cold and the thermostat controls the temperature with precision.
This direct-fit kit offers a safe and reliable cooling system for the FK2 which is known to suffer heat issues on track. It comes complete with easy-to-understand instructions and our technical support team are always happy to answer any questions you may have.

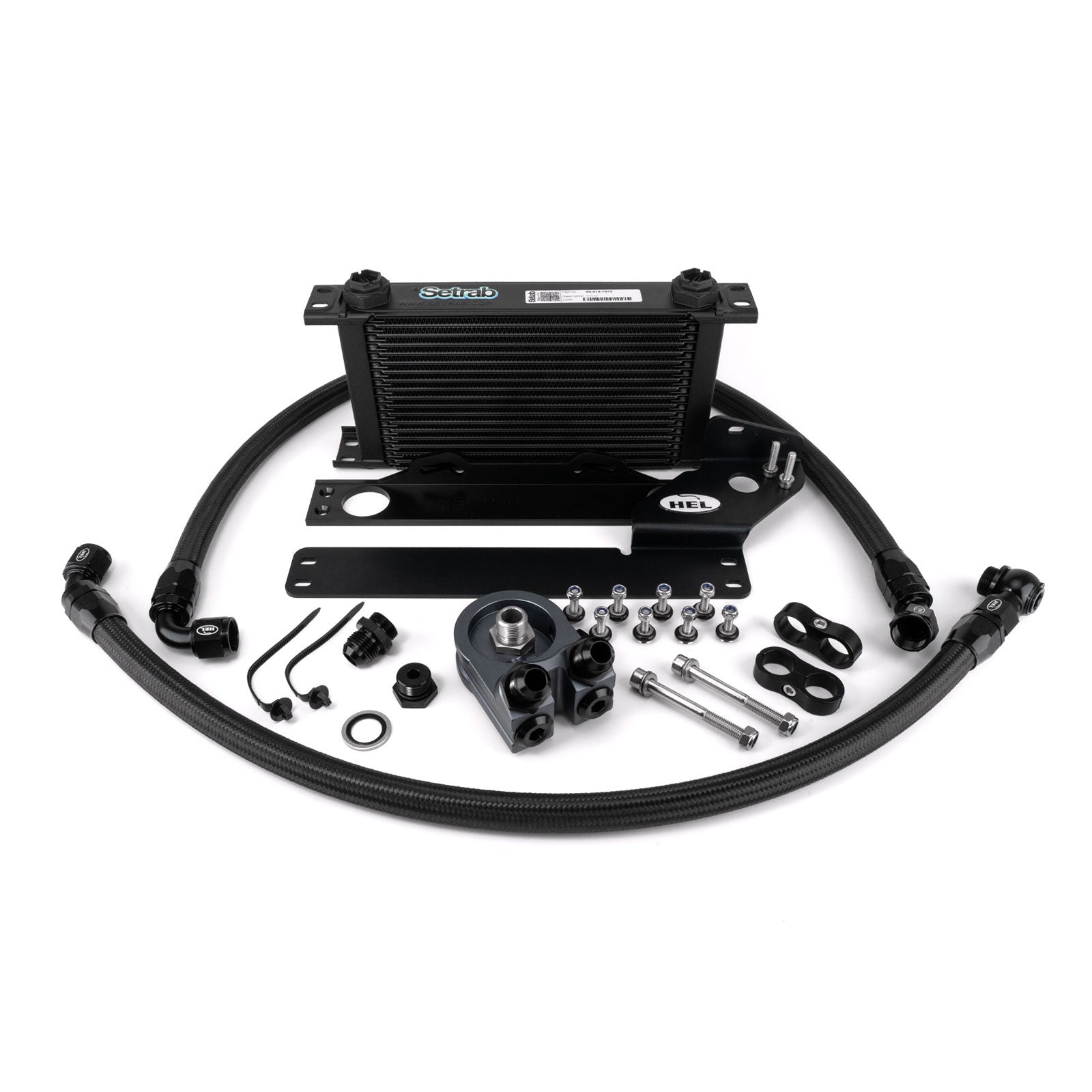

- Setrab Series 6 ProLine 19 row oil cooler with AN10 banjo adapters.
- HEL custom aluminium mounting bracket.
- Non-thermostatic oil filter sandwich plate with a 92°C in-line thermostat.
- Preassembled AN10 HEL braided hoses with anodised aluminium fittings (heat sleeve optional).
- Stainless steel mounting hardware.
- Installation instructions.
HEL Performance Automotive Oil Cooler Kits – Precision, Durability, and Race-Winning Performance
When it comes to keeping your engine temperatures in check, HEL Performance Automotive Oil Cooler Kits are the ultimate choice for both track and street applications. Designed with precision, durability, and performance in mind, these kits provide superior cooling efficiency to protect your engine from excessive heat, ensuring consistent performance under extreme conditions.
What sets HEL Performance apart? It’s our uncompromising commitment to quality. Unlike other brands, we machine every component in-house using CNC precision—giving us complete control over the manufacturing process. This results in faultless, high-quality products that are built to last, even in the most demanding environments.From race-winning performance on the track to reliable endurance on the open road, HEL Performance oil cooler kits deliver the cooling efficiency your engine demands. Whether you're pushing limits on the circuit or cruising through daily commutes, trust in HEL Performance for superior oil cooling solutions.
HEL Performance Oil Cooler Features
CNC Billet Thermostatic Sandwich Plate
The HEL Performance thermostatic oil filter sandwich plate is engineered for superior oil temperature regulation, ensuring your engine performs optimally in all conditions. Available in multiple configurations, with a selection of center bolt options and thermostat temperatures (82°C, 92°C, or 102°C), this billet sandwich plate is designed to seamlessly integrate with your oil cooling system.
Equipped with a built-in thermostat, this advanced design directs oil to the external cooler only when needed, allowing for a faster engine warm-up and added protection in cold weather—a key advantage over non-thermostatic alternatives. Once the oil reaches its pre-set temperature, the valve opens, enabling a controlled flow to the cooler, which efficiently dissipates heat via cooling fins or an auxiliary fan system.
With approximately 10% of the oil circulating through the cooler at any time, the system ensures consistent flow, prevents air pockets, and mitigates the risk of thermal shock. Excess oil is efficiently returned to the engine or transmission via the internal bypass, maintaining optimal operating temperatures without overcooling.Manufactured from CNC-machined billet aluminum, the HEL Performance sandwich plate guarantees exceptional strength, precision, and durability, making it an essential upgrade for thos
High-Quality Setrab Oil Cooler Core
Every HEL Performance oil cooler kit is built around a high-quality, race-proven Setrab oil cooler, manufactured in Sweden to the highest industry standards. For over a decade, we've relied on Setrab’s exceptional craftsmanship and performance, and in all that time, we have never encountered a single failure—a testament to their superior durability and reliability.When it comes to oil cooling in demanding conditions, failure is not an option. An oil cooler burst or leak could mean catastrophic engine damage, which is why we only trust Setrab.
Their precision-engineered cores ensure consistent oil temperature regulation, enhancing engine longevity and performance, whether you're on the race track or the open road.Setrab oil coolers are designed to withstand extreme stress, and their proven resilience speaks for itself. We’ve even received reports of severe front-end collisions where the Setrab oil cooler was the only intact component—a true testament to its uncompromising build quality.
With Setrab oil cooler cores at the heart of our HEL Performance kits, you get world-class reliability, optimal heat dissipation, and the confidence to push your engine to the limit.
High Performance Braided Hoses and CNC Fittings
The HEL Performance range of braided hose and precision-engineered fittings is designed to handle the most demanding motorsport and automotive applications, ensuring unrivaled durability, flexibility, and performance. Whether used for fuel, oil, or coolant systems, our components deliver exceptional resistance to high pressures, extreme temperatures, and harsh conditions—making them the industry standard for professional racing and high-performance builds.
Our CNC-machined aluminum and stainless steel fittings are crafted from premium materials to guarantee corrosion resistance and long-term reliability. Featuring a 360-degree swivel joint, our swivel fittings allow for effortless alignment during installation, while our tapered screw-type hose ends prevent damage to the hose, ensuring a secure and leak-free connection. With sizes ranging from AN03 (-3) to AN20 (-20), we provide the precision needed to optimize fluid flow rates and pressures.
The HEL Performance braided hose range is reinforced with a stainless steel internal braid, making it lightweight, flexible, and capable of withstanding extreme pressures and temperatures. Our hoses are compatible with high-performance fuels, including ethanol-based blends, and offer superior resistance to degradation from chemicals.Tested in top-level motorsport events such as BTCC, Global Time Attack, Pikes Peak, Drift Masters, and Grid Life, our hoses and fittings have proven their reliability under the most extreme conditions. Whether you're upgrading an OEM system or building a full race-spec setup, HEL Performance delivers the fluid management solutions you can trust.
Laser Cut Mounting Brackets
Every HEL Performance Oil Cooler Kit includes direct-fit mounting brackets engineered for strength, precision, and durability. These brackets are laser-cut and precision-folded to ensure an exact fit, eliminating the need for modifications while providing a secure, hassle-free installation. To enhance longevity and resist corrosion, each bracket is powder-coated in black, delivering a stealthy, professional finish that seamlessly integrates with your vehicle’s underbody.
Designed with optimal airflow in mind, our brackets securely mount the Setrab oil cooler in the ideal position—behind the lower bumper grille. This location has been tested and proven to offer maximum cooling efficiency by allowing unrestricted airflow, ensuring consistent oil temperature regulation without obstructing other critical components.
